Lenovo Legion Y540 Full Specifications and Key Features
| Category | Details |
|---|---|
| Model | Lenovo Legion Y540 |
| Launch Date | 2019 |
| Build Quality | Plastic body with a premium matte finish |
| Operating System | Windows 10 Home / Windows 10 Pro (Upgradeable to Windows 11) |
Display
| Type | IPS Anti-glare |
|---|---|
| Size | 15.6 inches / 17.3 inches |
| Resolution | Full HD (1920 x 1080 pixels) |
| Refresh Rate | 60Hz / 120Hz / 144Hz (varies by configuration) |
| Brightness | Up to 300 nits |
| Color Gamut | 72% NTSC (depending on panel) |
Processor Options
| CPU Model | Intel Core i5-9300H / i7-9750H / i7-10750H (later models) |
|---|---|
| Cores/Threads | Up to 6 Cores / 12 Threads |
| Base Clock Speed | 2.4GHz (i5) / 2.6GHz (i7) |
| Turbo Boost | Up to 4.5GHz |
Graphics Options
| GPU | NVIDIA GeForce GTX 1050 / 1650 / 1660 Ti / RTX 2060 |
|---|---|
| VRAM | 3GB / 4GB / 6GB GDDR5 or GDDR6 (depends on GPU) |
Memory (RAM)
| Type | DDR4 |
|---|---|
| Capacity | 8GB / 16GB / Up to 32GB (Expandable) |
| Speed | 2666MHz |
| Slots | 2 x SO-DIMM slots |
Storage Options
| Type | HDD + SSD Combo |
|---|---|
| HDD | 1TB 5400 RPM |
| SSD | 128GB / 256GB / 512GB / 1TB PCIe NVMe SSD |
| Expandable | Yes, M.2 slot available |
Audio
| Speakers | 2 x 2W Harman speakers |
|---|---|
| Audio Technology | Dolby Atmos for Gaming |
| Microphone | Integrated Dual Array |
Keyboard & Touchpad
| Keyboard | Full-size backlit keyboard (white lighting) |
|---|---|
| Touchpad | Precision touchpad |
Webcam
| Resolution | 720p HD |
|---|---|
| Position | Bottom bezel |
| Privacy Shutter | No |
Connectivity
| Wi-Fi | Intel Wireless-AC 9560 (802.11ac 2×2) |
|---|---|
| Bluetooth | Bluetooth 5.0 |
| Ethernet | Yes, RJ45 Gigabit Ethernet |
Ports
| USB Ports | 3 x USB 3.1 Gen 1, 1 x USB-C 3.1 Gen 2 |
|---|---|
| HDMI | 1 x HDMI 2.0 |
| Mini DisplayPort | 1 x Mini DisplayPort |
| Ethernet (RJ-45) | Yes |
| Audio Jack | 3.5mm Combo Jack |
| Power Port | Yes |
| Kensington Lock Slot | Yes |
Battery
| Capacity | 52.5Wh / 57Wh |
|---|---|
| Backup | Up to 5 hours (varies by usage) |
| Fast Charging | Yes, Rapid Charge support |
Dimensions & Weight
| Dimensions | 365 mm x 260 mm x 25.9 mm (15.6″) |
|---|---|
| Weight | Approx. 2.3 kg |
Cooling System
| Technology | Dual Channel Thermal System |
|---|---|
| Fans & Vents | 2 fans, 4 vents with heat pipes |
Other Features
| Software | Lenovo Vantage, Lenovo Nerve Center |
|---|---|
| Security | Firmware TPM 2.0, Kensington lock slot |
| Build Orientation | Center-hinged screen with extended back panel |
DESCRIPTION:-
The Lenovo Legion Y540 is a beastly mid-range gaming laptop designed for gamers and creators who want performance without the premium price tag. Launched as part of Lenovo’s Legion lineup, this model quickly became a favorite among budget-conscious gamers looking for sleek design, solid internals, and thermal efficiency. 🔥🎮
Let’s dive deep into what makes the Lenovo Legion Y540 a worthy contender in the gaming laptop arena. ⬇️
🎨 Sleek, Minimalist Design
Unlike many gaming laptops that go overboard with aggressive angles and RGB overload, the Legion Y540 embraces a more mature, professional look. It features a clean, all-black chassis with a soft-touch matte finish and subtle Legion branding. The rear-hinge design pushes most of the ports to the back, keeping the workspace tidy and the aesthetics clean. ✅
Despite its gaming DNA, this laptop is perfectly suited for students, developers, and professionals who don’t want to flaunt their gaming gear in public.
⚙️ Powerful Hardware Under the Hood
This laptop is more than just looks — it comes packed with serious hardware muscle. 💪
The Legion Y540 supports Intel’s 9th-generation Core i5 and i7 processors, with turbo boost capabilities that ramp up performance during heavy workloads or gaming sessions. On the graphics front, you get options ranging from NVIDIA GeForce GTX 1650 to the RTX 2060, depending on your configuration.
🔗 Learn more about Intel’s 9th Gen processors
🔗 Learn more about NVIDIA RTX 2060 GPU
With up to 32GB DDR4 RAM and PCIe SSDs, load times are minimal, multitasking is smooth, and performance stays consistent — even in long gaming marathons. 🧠⚡
🎮 Stunning Display for Gaming and Media
The Legion Y540 comes in 15.6″ and 17.3″ Full HD IPS displays with refresh rates of 60Hz, 120Hz, or 144Hz, depending on your choice. These displays offer great color accuracy, wide viewing angles, and anti-glare coatings for immersive gaming even in bright environments Lenovo Legion Y540 . 🌈
Whether you’re editing photos Lenovo Legion Y540 , watching Netflix, or diving into AAA games like Cyberpunk 2077 or Call of Duty: Warzone, the visuals are sharp and fluid. 📺🕹️
❄️ Thermal Efficiency – Always Cool Under Pressure
One of the standout features of the Legion Y540 is its Coldfront dual-channel thermal system. This innovative cooling tech uses two separate channels for CPU and GPU, reducing heat buildup significantly. With four thermal vents and dedicated heat syncs, the laptop stays cool and quiet — even during intense gaming sessions. ❄️🌀
This is a major advantage over other laptops in the same price range, which often suffer from thermal throttling. 💻🔥
🎧 Immersive Audio with Dolby Atmos
Audio quality on the Legion Y540 is another big win. Equipped with Harman-tuned speakers and Dolby Atmos support, it offers an immersive, 3D surround sound experience. Whether you’re gaming with a headset or listening through the built-in speakers, you’ll enjoy crisp highs and punchy lows. 🎧🎶
🔗 Read more about Dolby Atmos for Gaming
⌨️ Backlit Keyboard – Designed for Gamers
The full-sized white backlit keyboard on the Legion Y540 is ergonomic, responsive, and made for long gaming sessions. It features 1.7mm key travel, full number pad, and anti-ghosting technology — giving you the edge in FPS and RTS games. ⌨️⚔️
The touchpad is Windows Precision-certified, providing smooth and accurate navigation.

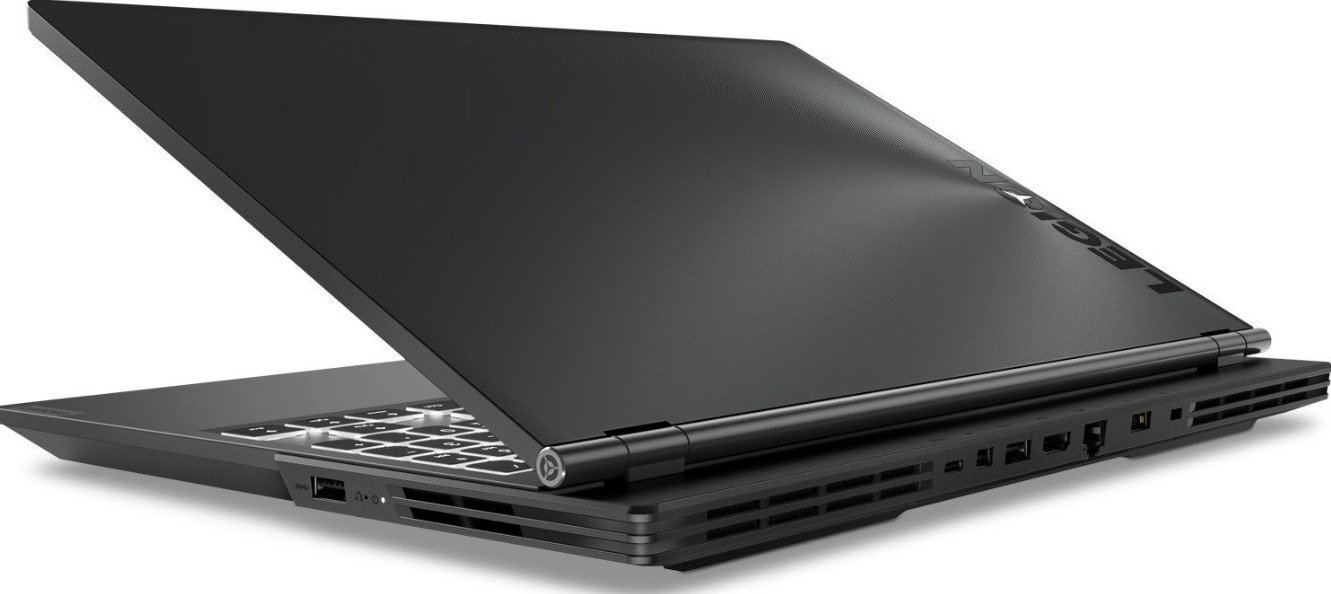

🔌 Ports and Connectivity – Everything You Need
The Y540 offers a generous set of ports:
- 3 x USB 3.1
- 1 x USB-C
- HDMI 2.0
- Mini DisplayPort
- RJ-45 Ethernet
- 3.5mm combo audio jack
With Wi-Fi 5 (802.11ac) and Bluetooth 5.0, you’re also set for seamless wireless connectivity. 🌐🔗
🔋 Battery Life – Average, but Manageable
The only area where the Y540 doesn’t shine is battery life. With a 52.5Wh or 57Wh battery, you’ll get around 4 to 5 hours on standard usage — and considerably less while gaming. 🎮🔋
However, this is expected for a gaming laptop with powerful internals and a high-refresh-rate display Lenovo Legion Y540 .
✅ Pros and Cons
👍 Pros:
- Clean, professional design ✅
- Excellent performance for gaming and multitasking 🎯
- High-quality IPS display options 🖼️
- Effective dual-channel cooling ❄️
- Rich audio with Dolby Atmos 🎵
👎 Cons:
- Below-average battery life 🔋
- No SD card reader 🧾
- Bottom bezel webcam placement isn’t ideal 📷
💰 Conclusion – Is It Worth It?
Absolutely! The Lenovo Legion Y540 offers excellent value for gamers and creators who want high performance, a professional design, and great thermals — all at a reasonable price point. 💼🎮
Whether you’re gaming on Lenovo Legion Y540 , editing videos, streaming, or working on design tasks, this laptop gets the job done without overheating or breaking the bank.
